Battery separators constructed from aramid nanofiber.

Nanostructured para-aramid — one ten-thousandth the width of typical aramid fibers — assembles to form a separator thinner, stiffer and more heat-resistant than leading commercial polyolefin separators.

Request a sample

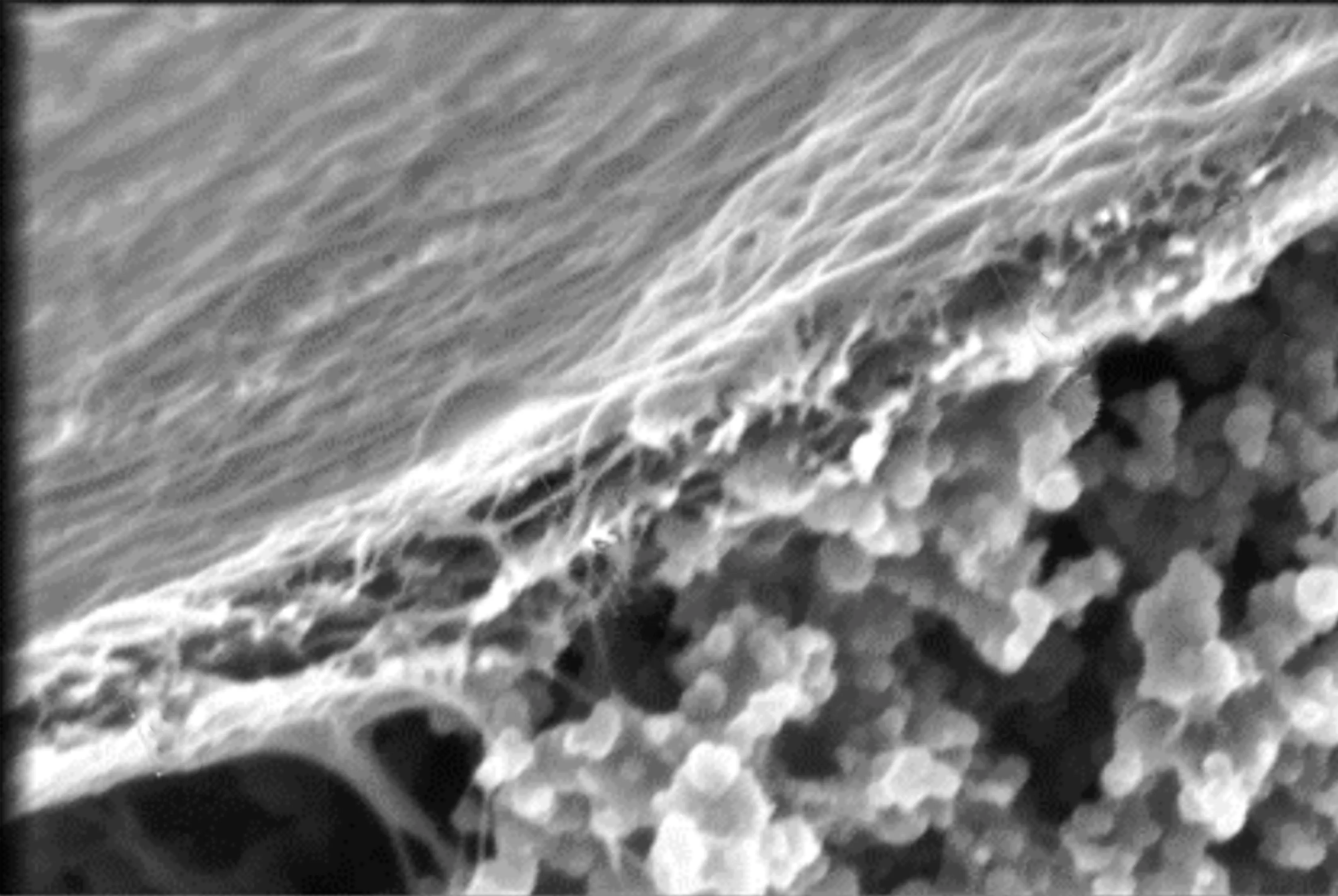

Scanning electron micrograph, in cross-section, of an ARACHNE aramid nanofiber separator deposited directly on a sulfur–carbon cathode — **Fig. 1** ARACHNE separator (top) deposited directly on a sulfur–carbon cathode, cross-section. SEM, 120 000×, FEI Helios 650.

ARACHNE differs structurally from polyolefin separators.

Both surfaces imaged on the same microscope at 35 000×. Stretched polypropylene opens slit-shaped pores; ARACHNE is a continuous mesh of aramid nanofibers.

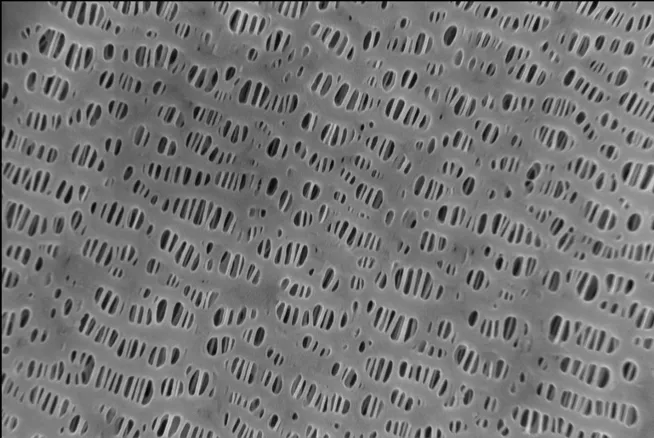

Scanning electron micrograph of a Celgard 2400 polypropylene separator surface showing elongated slit-shaped pores — **Fig. 2a** Celgard 2400 (dry-stretched PP), surface. SEM, 35 000×, FEI Helios 650.

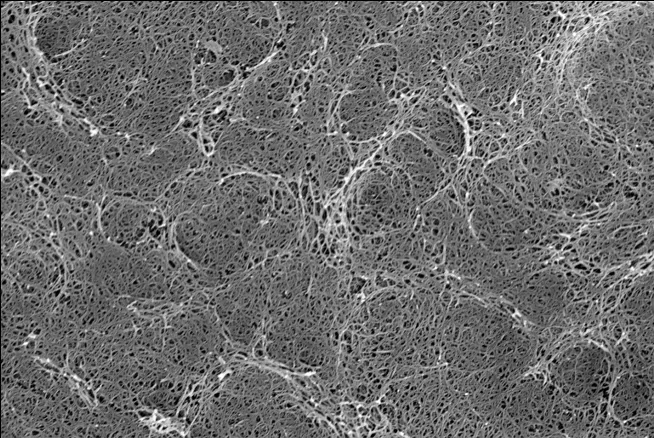

Scanning electron micrograph of an ARACHNE separator surface showing a dense, interconnected aramid nanofiber mesh — **Fig. 2b** ARACHNE, surface. SEM, 35 000×, FEI Helios 650.

ARACHNE 25, quantified.

Valerion's 2.5 µm free-standing para-aramid nanofiber separator benchmarked against two commercially available separators. Vendor-reported values vs. ARACHNE in-house data.

Technical data sheet · rev. Oct 2026

Property	ARACHNE 25	Celgard 2500	Gellec UltraThin
Material	Para-aramid nanofiber	PP, dry-stretch	Wet PE + ceramic coat
Thickness	2.5 µm	25 µm	9 µm PE + 3 µm ceramic
Melting point	None; carbon decomposition at 574 °C	≈165 °C	≈135 °C
Heat shrinkage	0.1 % at 250 °C	1.1 % MD, 105 °C	1.4 % MD, 90 °C
Tensile strength (weakest axis)	177 MPa, isotropic	12.7 MPa	Not available
Young's modulus	8.8 GPa	≈0.5 GPa	Not available
Puncture strength	5.4 N	3.2 N	3–10 N
Porosity · Gurley	27 % · 430 s	55 % · 200 s	40 % · 80–400 s
Areal resistance	≈0.7 Ω·cm²	≈2.3 Ω·cm²	Not available
Maturity	Low throughput pilot line, scale PoC	Commercial	Commercial, GWh scale

ARACHNE 25: Valerion in-house measurements on engineering samples; preliminary, indicative values.

Gellec: published table for its 9 µm PE base film; puncture and Gurley are product ranges.

Celgard 2500: datasheet (rev. 10/21).

Request a sample

ARACHNE application advantages.

ARACHNE 25's characteristics translate to improved battery performance in critical areas.

High-energy EV: Reclaim separator volume; highest 0.1C capacity in our NMC811 tests.
Safety-critical packs: No melting point, 0.1% change at 250°C, self-extinguishing [4].
Fast charge: ≈30% lower impedance than Celgard 2500; 9° electrolyte contact angle.
Li-metal · Li–S · Na-ion: Dendrite suppression; 3,500+ Li–S cycles demonstrated [2,3].
Solid-state & polymer: ANF scaffold reinforces thin polymer and gel electrolytes [5]. Enables aSEI formation.
Structural battery designs: Load-bearing membranes for drones, eVTOL, wearables [5].
